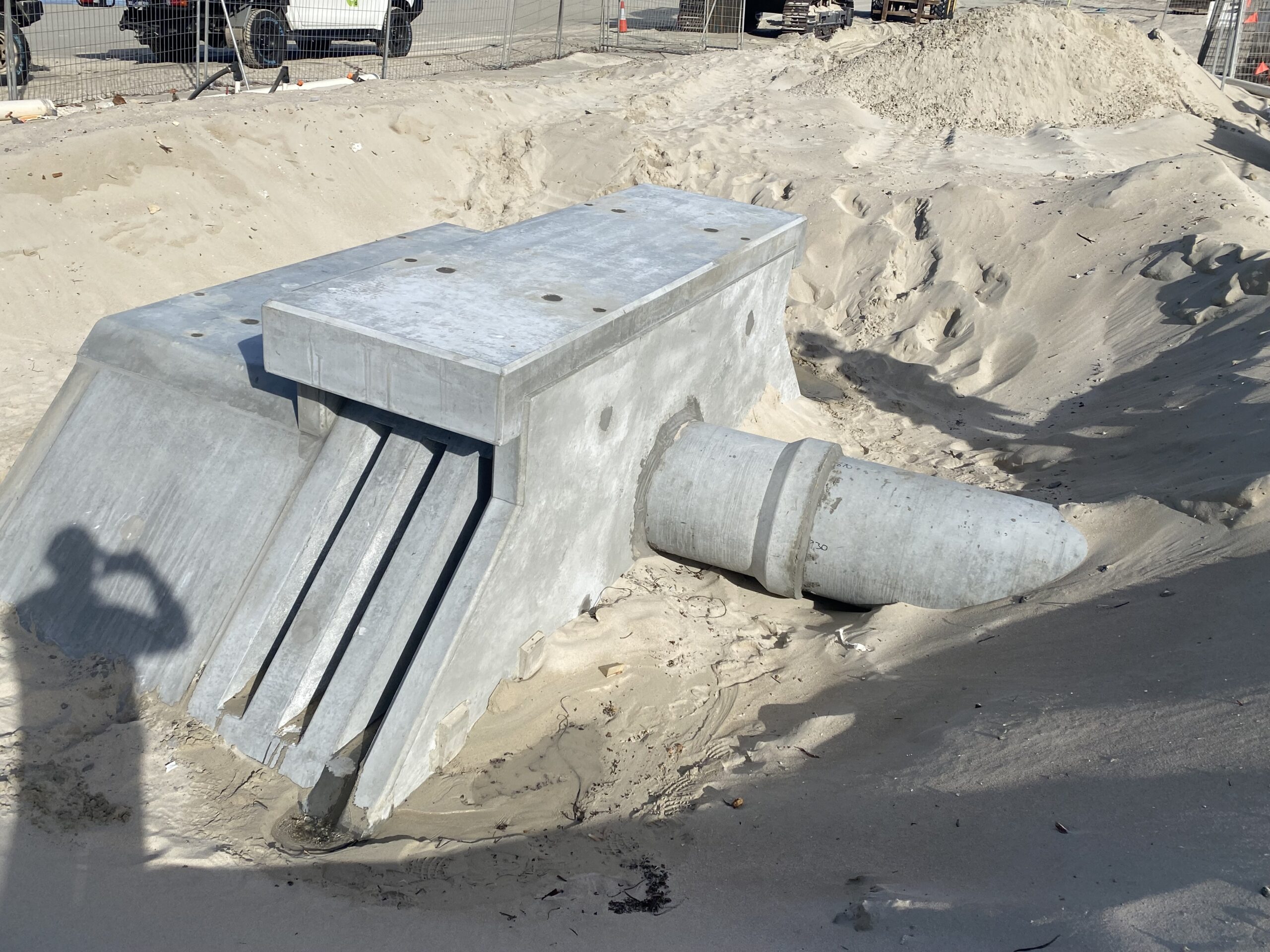

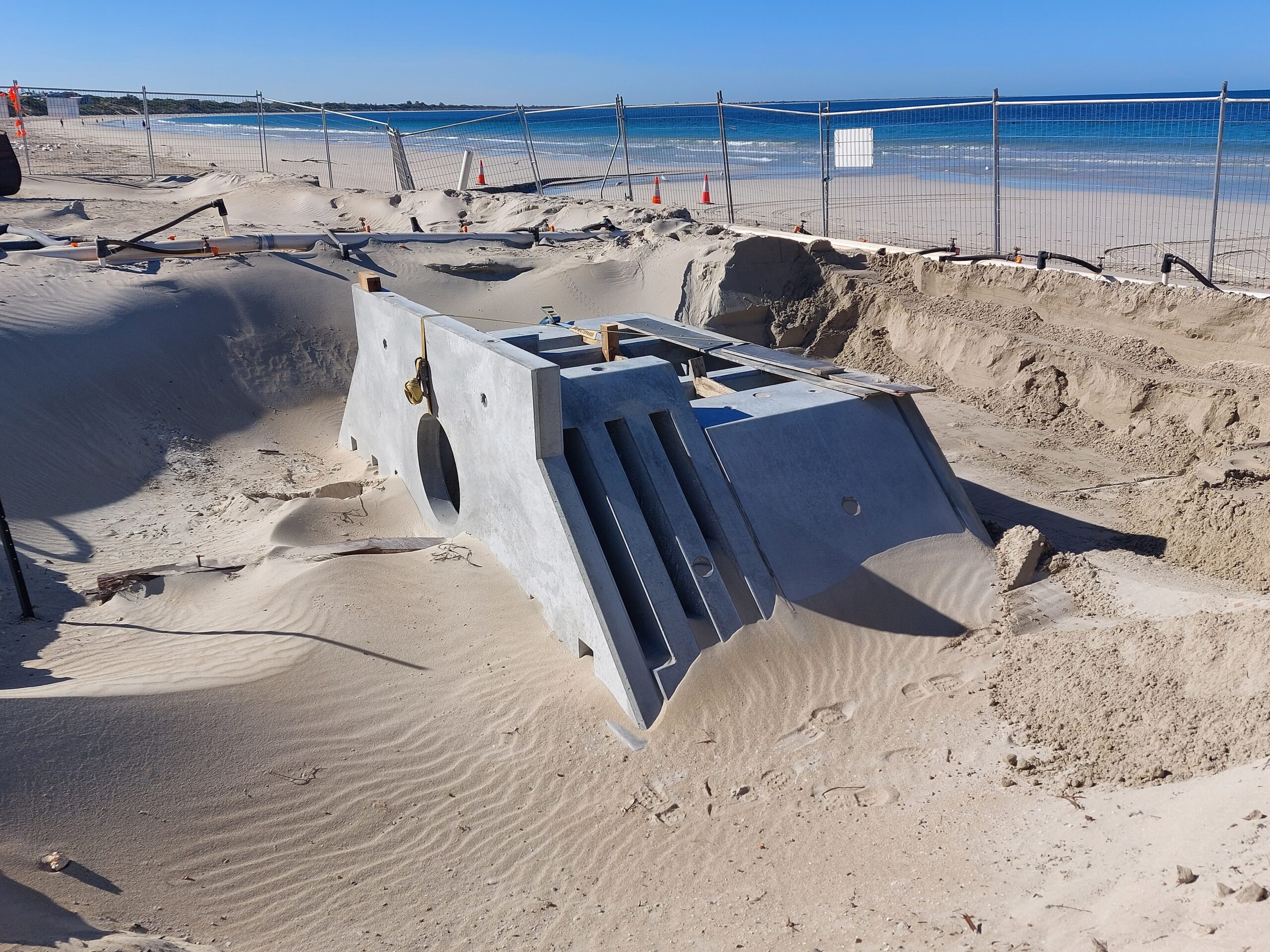

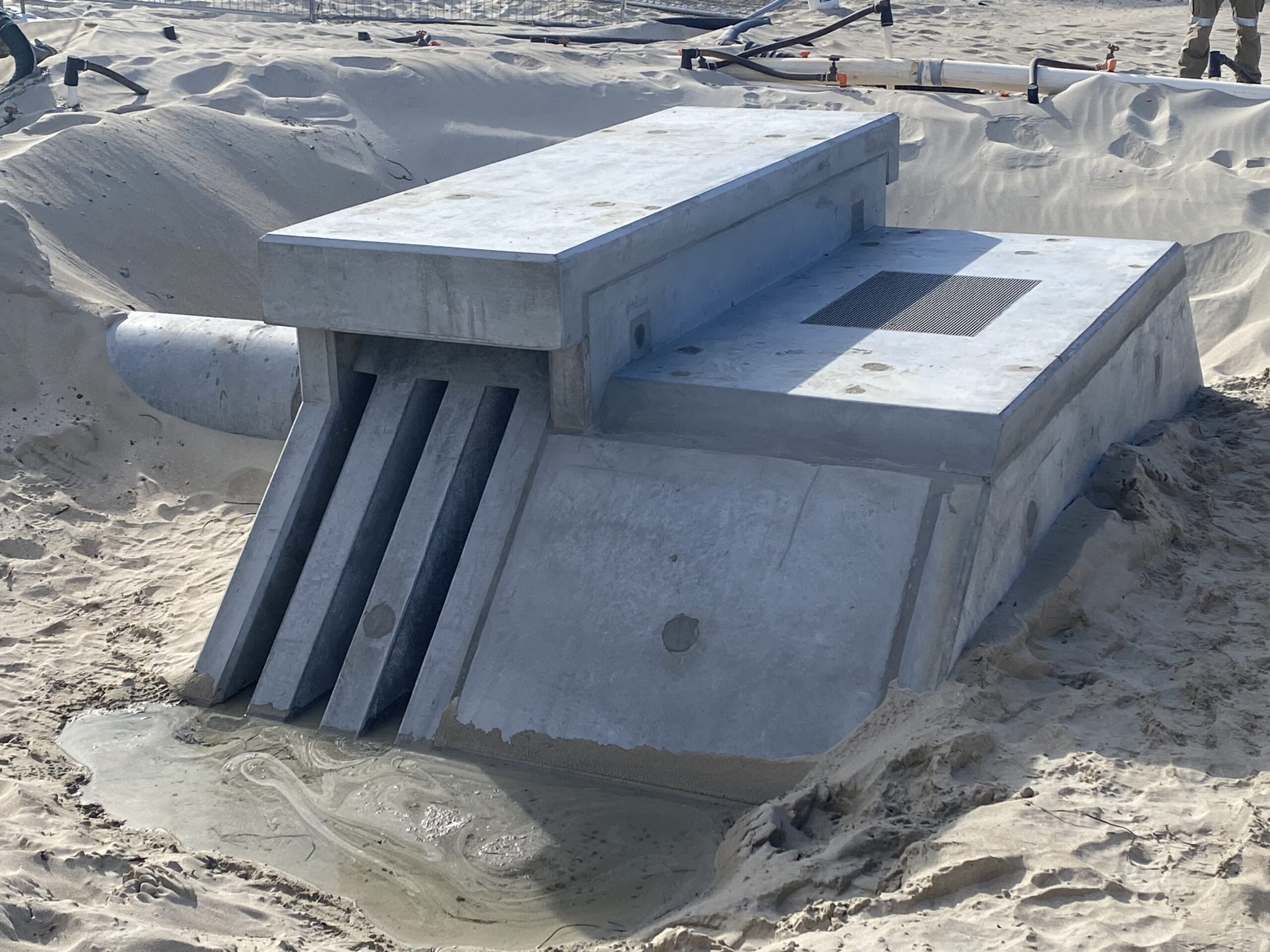

Waikiki Outfall

Description

HydraStorm was engaged by TRACC Civil to deesign and supply an alternative infiltration solution for one of their upcoming projects

With support from our business partners at Frankische, We were ablee to design an up-spec infiltration solution.

Each fitted with two Quadro Control shafts to enable future inspection and maintenance across the lifetime of the tanks.

• 3,334 Rigofill ST-B Cubes
• 760 Rigofill ST-B Sidewalls
• 8 Quadro Control Shafts ST-B
• 3,600m2 Geotextile

Facts & Figures

Total footprint 1,072m2

• Tank 1 – L 24m x W: 9.6m x H: 1.32m – Gross Volume: 304.1 3m3, Net Volume: 291.96m3
• Tank 2 – L: 30,4m x W: 8m x H: 1.32m – Gross Volume: 321.02m3, Net Volume: 308.18m3
• Tank 3 – L 30.4m x W: 8m x H: 1.32m – Gross Volume: 321.02m3, Net Volume: 308.18m3
• Tank 4 – L 29.6m x W: 12m x H: 1.32m – Gross Volume: 468.86m3, Net Volume: 450.11m3
